A circos-style Manhattan plot where chromosomes are arranged in a circle. Built entirely with ggplot2, unlike CMplot's base R implementation. Supports multiple rings for multi-trait comparison.
Usage
circular_manhattan(
data,
chr = NULL,
bp = NULL,
p = NULL,
snp = NULL,
colors = c("#1A5276", "#76D7C4"),
point_size = 1.2,
alpha = 0.85,
genome_wide = 5e-08,
threshold_color = "#E74C3C",
highlight_snps = NULL,
highlight_color = "#E74C3C",
highlight_size = 2,
label_snps = NULL,
label_top_n = NULL,
show_chr_labels = TRUE,
inner_radius = 0.35,
chr_gap_fraction = 0.012,
ring_labels = NULL,
downsample = TRUE,
downsample_n = 1e+05,
title = NULL
)Arguments
- data
A
gwas_dataobject, data.frame, or named list of gwas_data objects for multi-ring display.- chr, bp, p, snp
Column name overrides.
- colors
Two-color vector for alternating chromosomes, or a palette name from
gwas_palette().- point_size
Point size.
- alpha
Point transparency.
- genome_wide
Genome-wide significance threshold.
- threshold_color
Color for threshold ring.
- highlight_snps
SNP IDs to highlight.
- highlight_color
Color for highlighted SNPs.
- highlight_size
Size for highlighted points.
- label_snps
SNP IDs to label.
- label_top_n
Label top N SNPs.
- show_chr_labels
Show chromosome labels.
- inner_radius
Inner radius of the circle (proportion, 0-1).
- chr_gap_fraction
Gap between chromosomes as fraction of total.
- ring_labels
For multi-ring: labels for each ring.
- downsample
Enable smart downsampling.
- downsample_n
Target points after downsampling.
- title
Plot title.
Examples
data(example_gwas)

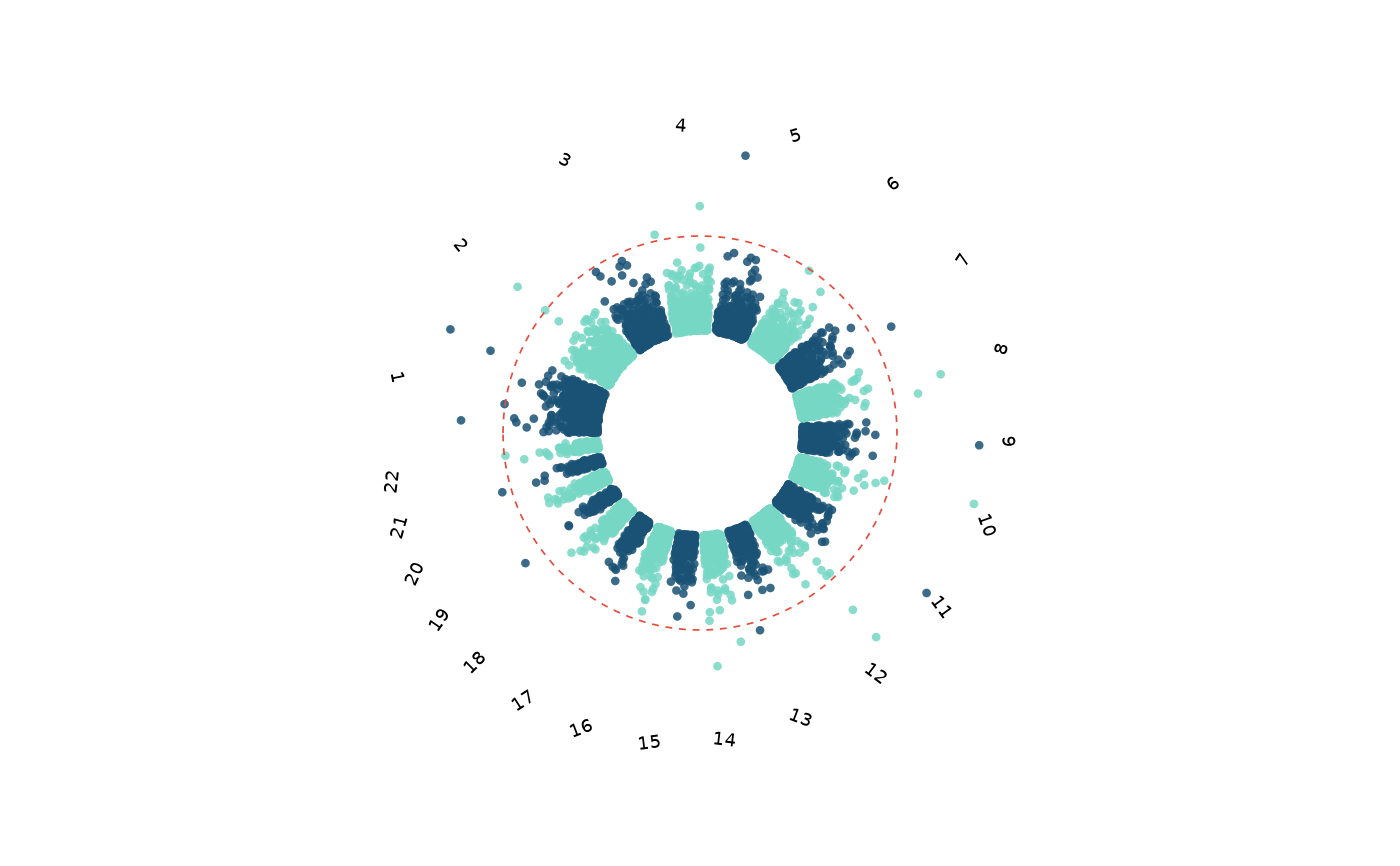

# Single trait
circular_manhattan(example_gwas)

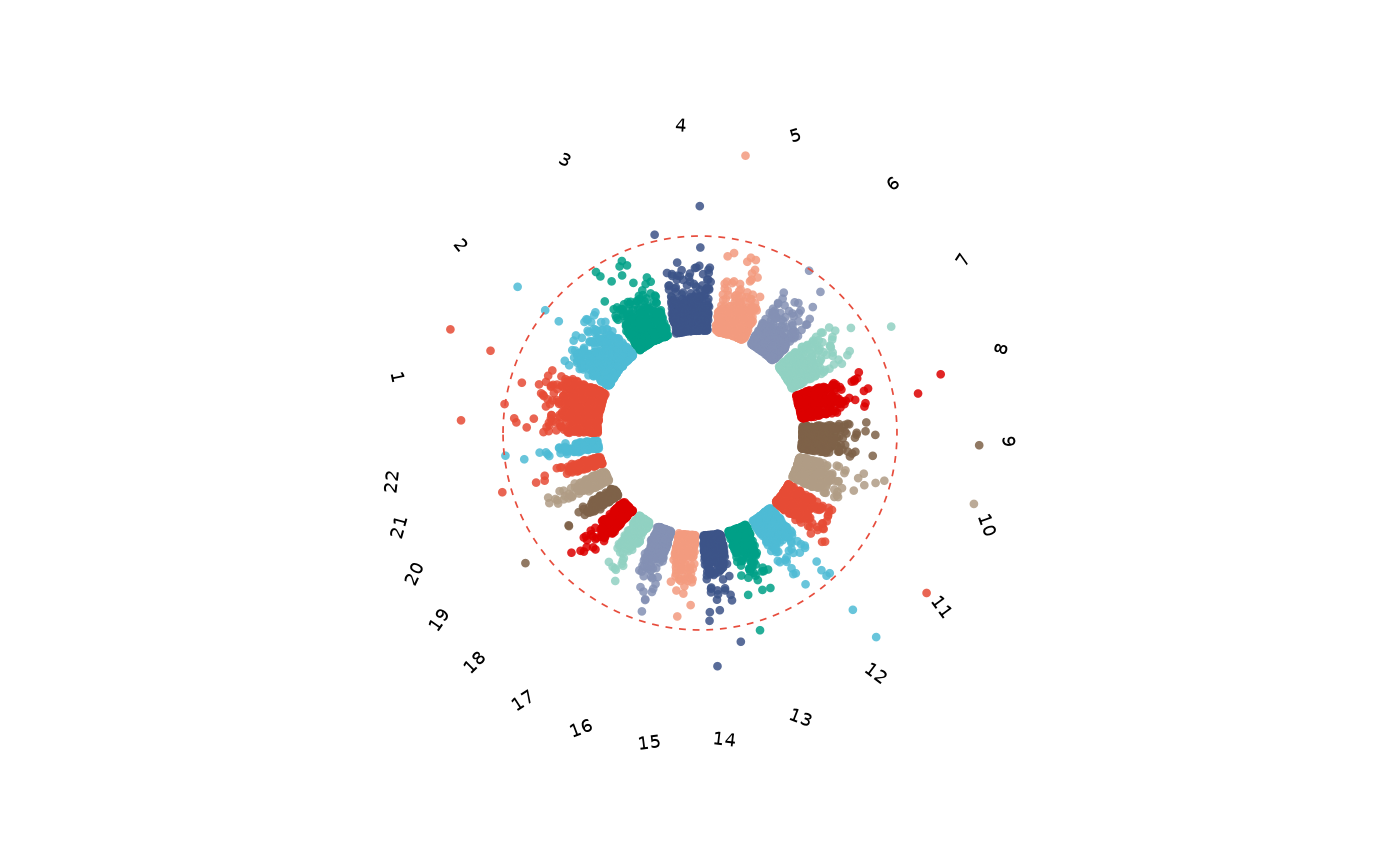

# Nature palette
circular_manhattan(example_gwas, colors = gwas_palette("nature"))

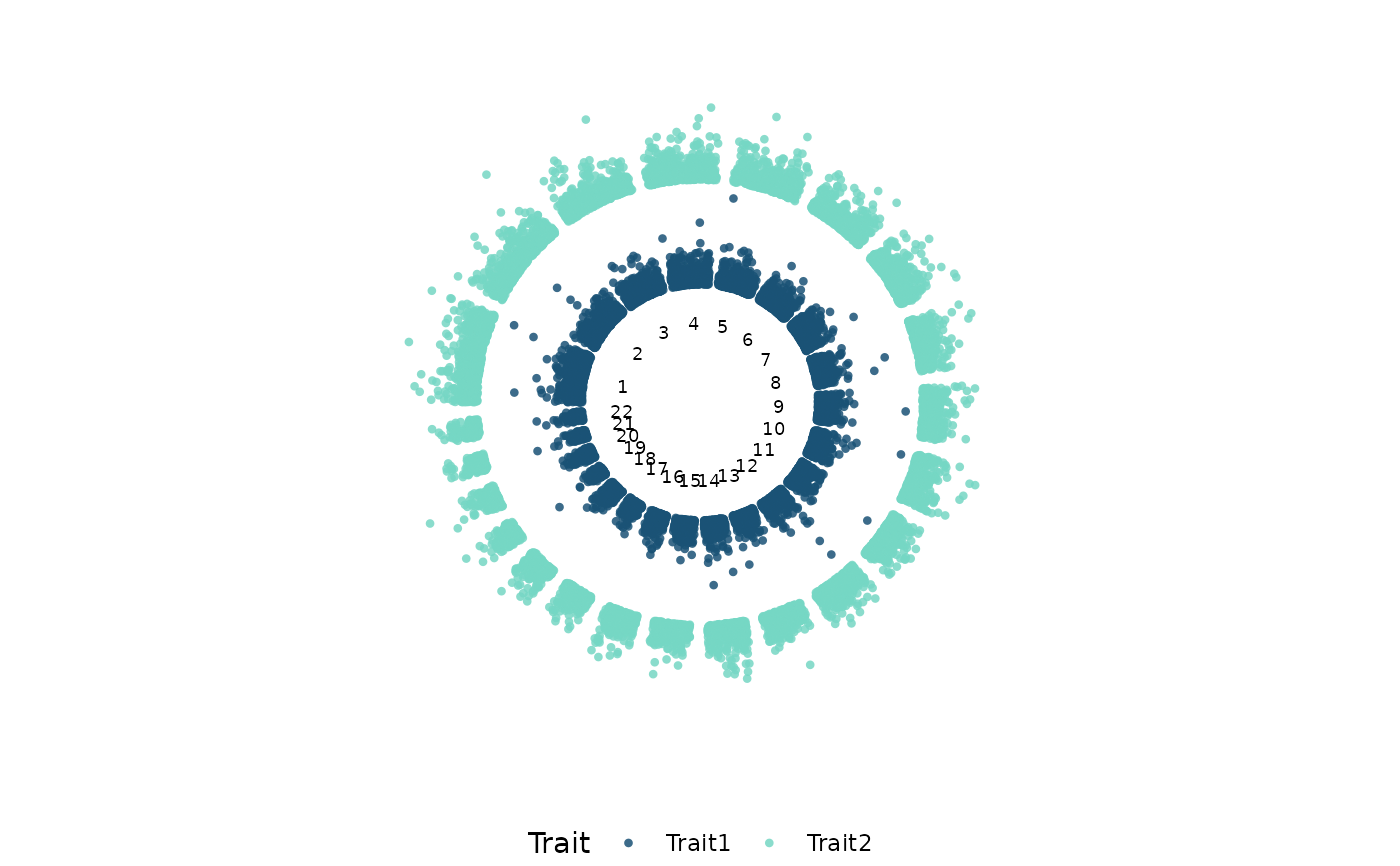

# Multi-ring: two traits
trait2 <- example_gwas
trait2$P <- runif(nrow(trait2))^3
circular_manhattan(list(Trait1 = example_gwas, Trait2 = trait2))
